Resolution 64x128 0.96'' OLED Display Module Transparent Support 12C/4 - Wire Spi

Name: Resolution 64x128 096 OLED Display Module Transparent Support 12C4 Wire Spi
Brand: Elite Tree
Price: 1 USD

Buy cheap Resolution 64x128 0.96'' OLED Display Module Transparent Support 12C/4 - Wire Spi product

Brand Name : Elite Tree

Model Number : ET096OL01

Certification : ISO9001:2015 / ISO14001

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100Kpcs~ per month

Delivery Time : 5days for sample and 20-25 days for mass production

Packaging Details : In anti-statics bag packed in carton or according to the customer's requirement

Display Type : OLED Display 0.96'' OLED Display Module

Operting Voltage : 2.6 ~ 3.5V

Operting Temperature : -40~70C

Storage Temperature : -40~85C

Driver IC : SH1107

Color : Monochrome white

Interface : 12C/4-Wire Spi

Product Name : OLED Display Module

Contact Now

OLED 0.96'' OLED Display Module 64 * 128 Resolution Transparent Support 12C/4-Wire Spi

OLED Display Module

Product Information

Display Type	0.96'' OLED Display Screen
Screen Size(inch)	0.96”
Display Resolution	64 * 128
Pixel Pitch	0.17mm * 0.17mm
Active Area (mm*mm)	10.86mm * 22.74mm
Outline Dimension (mm*mm)	14mm * 28mm * 1.22mm
Duty	1/28
PIN	13/22
Brightness (nits)	100(Min) cd/m²
Interface	12C/4-Wire Spi

Our advantages

1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

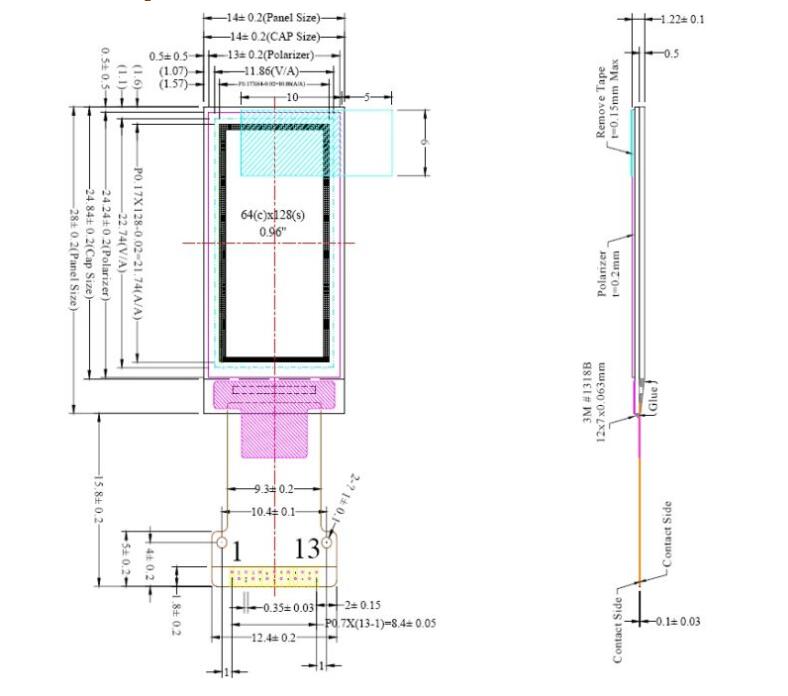

Outline Drawing

Resolution 64x128 0.96'' OLED Display Module Transparent Support 12C/4 - Wire Spi
