15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display

Name: 15PINs 4 Wires SPI OLED Screen Module 071 4864 Custom OLED Display
Brand: Elite Tree
Price: 1 USD

Buy cheap 15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display product

Brand Name : Elite Tree

Model Number : ET071OL

Certification : ISO9001:2015 / ISO14001

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100Kpcs~ per month

Delivery Time : 5days for sample and 20-25 days for mass production

Packaging Details : In anti-statics bag packed in carton or according to the customer's requirement

Display Type : OLED Display 0.71'' OLED Display Module

Operting Voltage : 2.6 ~ 3.5V

Operting Temperature : -30~70C

Storage Temperature : -40~80C

Driver IC : SSD1306

Color : Monochrome (White)

Contact Now

OLED Display 0.71'' OLED Display Module 48*64 Resolution With 15PINs 4-Wires SPI

OLED Display Module

Product Information

Display Type	0.71'' OLED Display Screen
Screen Size(inch)	0.71”
Display Resolution	48 * 64
Active Area (mm*mm)	10.54 mm * 14.7mm
Outline Dimension (mm*mm)	13.9mm * 22mm * 1.2mm
Duty	1/64
PIN	15
Brightness (nits)	100(Min) cd/m²
Interface	4-wire/SPI

Our advantages

1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

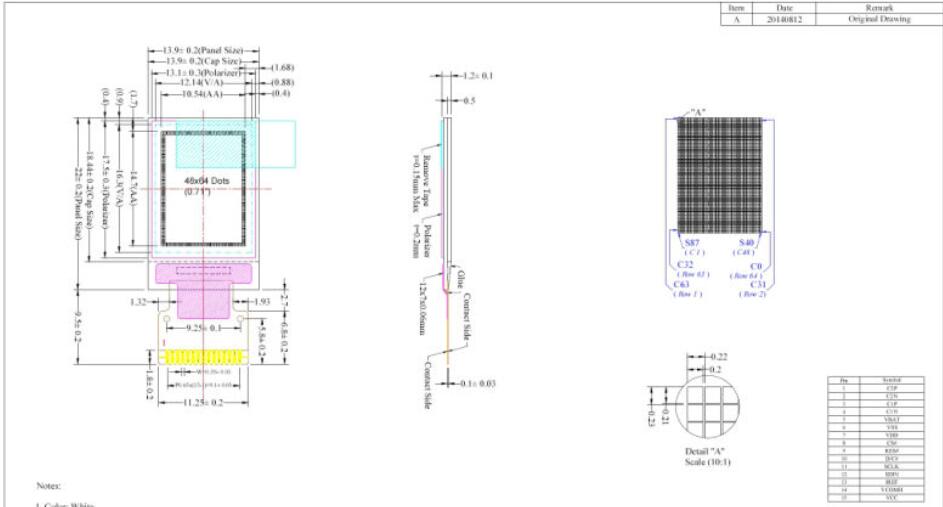

Outline Drawing

15PINs 4 - Wires SPI OLED Screen Module , 0.71'' 48*64 Custom OLED Display
